Medtronic M4/M5 Straightshot Microdebrider

User-Centered Design as a Smart Investment: How Great Design Drives Long-Term Value

PROJECT GOAL

Assist Medtronic in developing its next-generation microdebrider for ENT surgery.

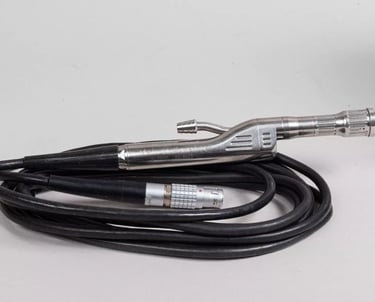

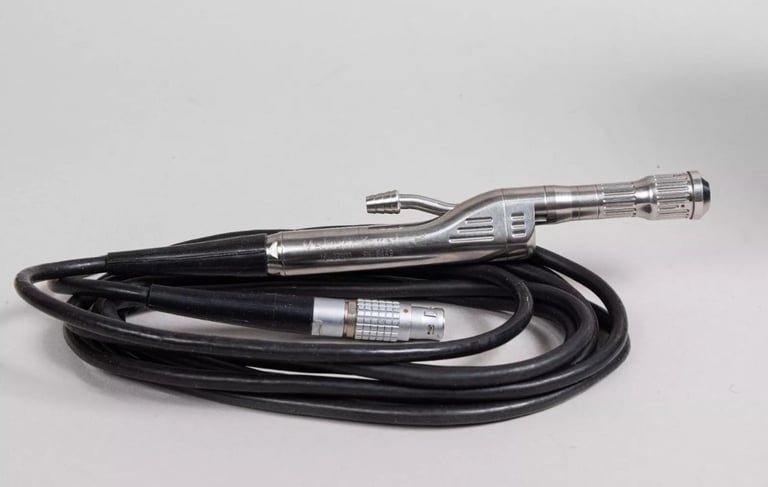

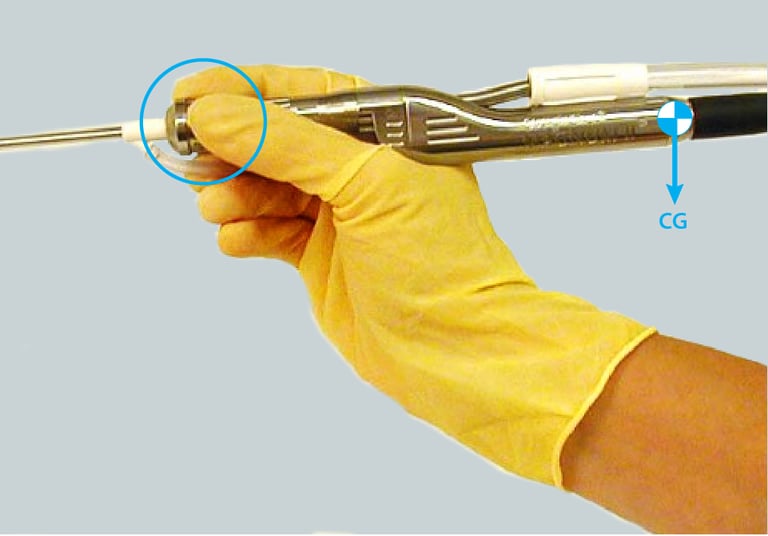

Before redesign - the Medtronic Magnum II Straightshot Microdebrider

BACKGROUND

The Medtronic Magnum II Straightshot Microdebrider was the category leader in ENT powered instruments and microdebriders, holding approximately 63% market share. A newcomer device, the Gyrus Diego, was causing significant concern for Medtronic ENT leadership as it began to capture some of their market share. Gyrus had hired the world’s largest and best-known design firm to help them develop the Diego. The new Diego handpiece looked sleek and ergonomic and had incorporated a new feature that allowed the cutting instrument to be rotated by twisting the nose of the handpiece. The Diego garnered additional attention by winning a Medical Design Excellence Award (MDEA), further raising the stakes for this project.

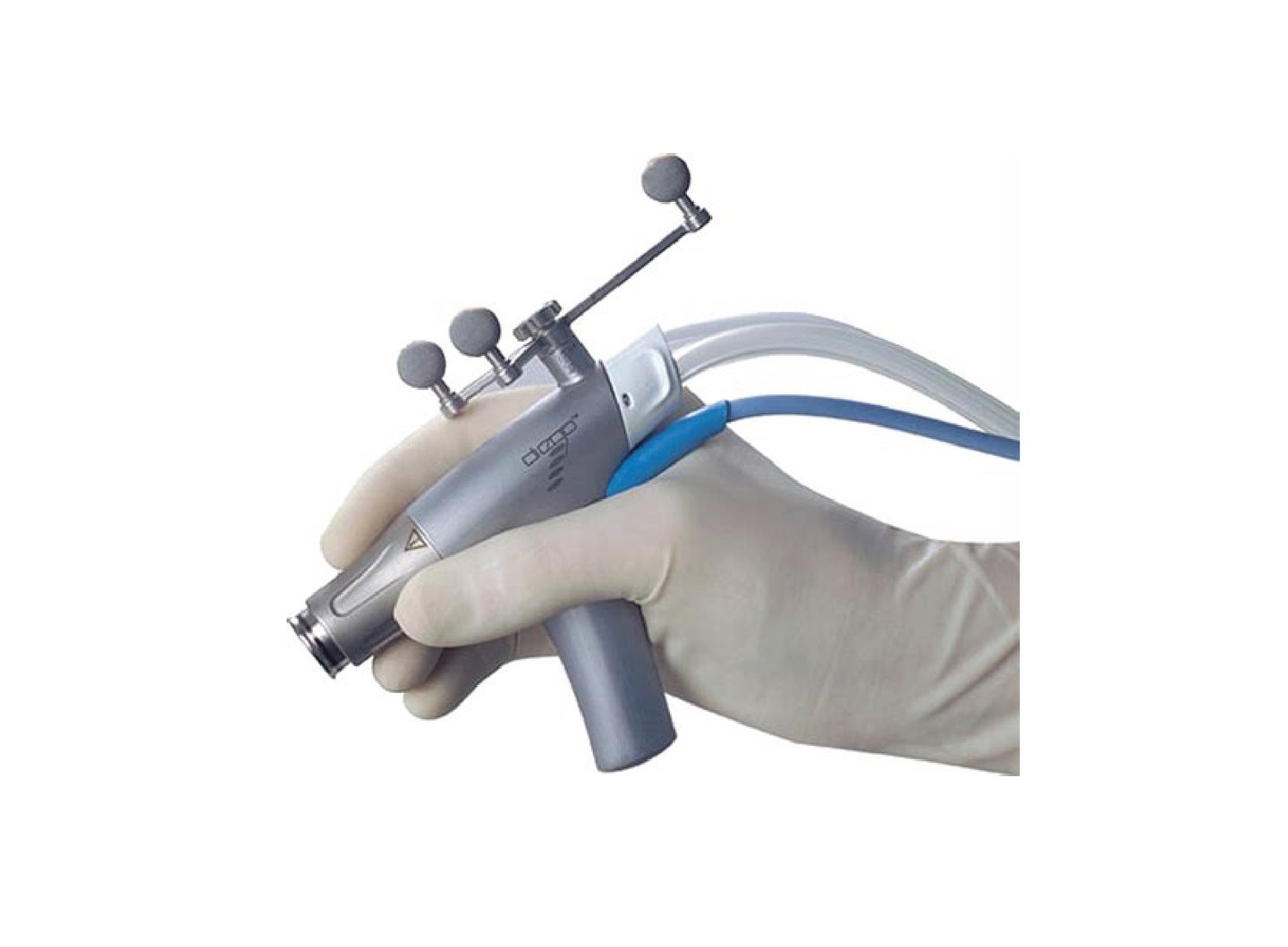

Gyrus Diego - the competitive threat

PROCESS

As warranted by the high stakes, a robust, multi-phase user-centered design approach was prescribed:

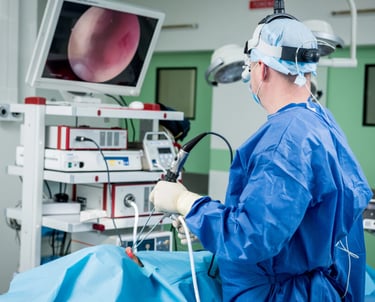

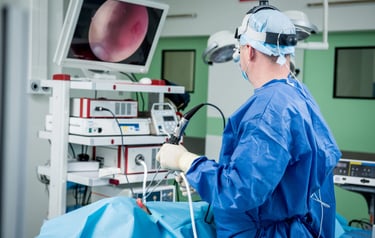

  • Observation and videorecording of 6 live ENT sinus surgery procedures in 3 different geographic locations.

  • Post-surgery interviews with surgeons to understand their experiences, challenges, and thoughts regarding opportunities for improvements in microdebrider design.

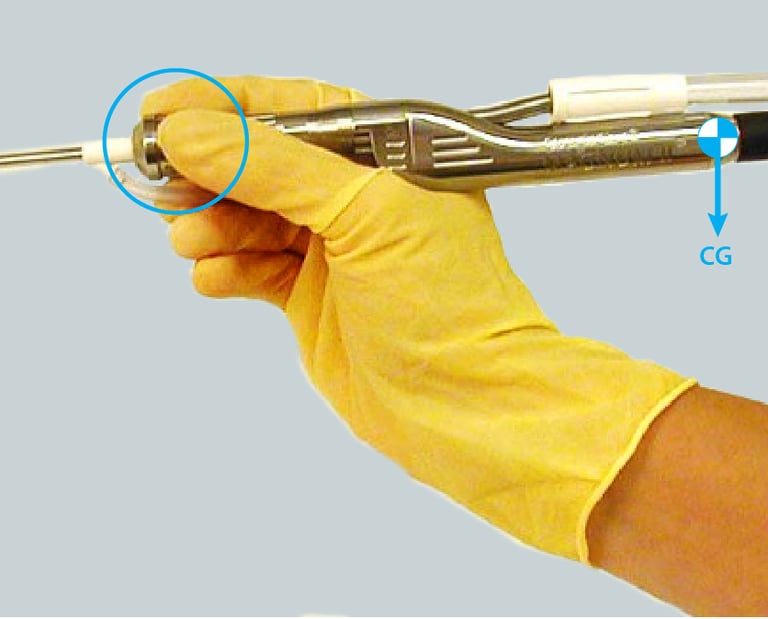

  • Review of the surgical videos by ergonomics design experts to identify grip strategies, grasping patterns, and microdebrider manipulations.

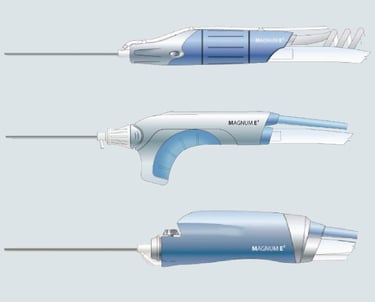

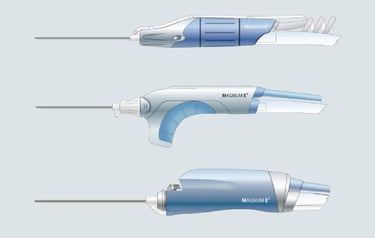

  • Concept ideation, refinement, 3-D modeling, and prototyping.

  • Prototype testing with surgeons in cadaver labs.

  • Design finalization, 3-D surface modeling, and development of detailed design and CMF specifications.

RESULTS

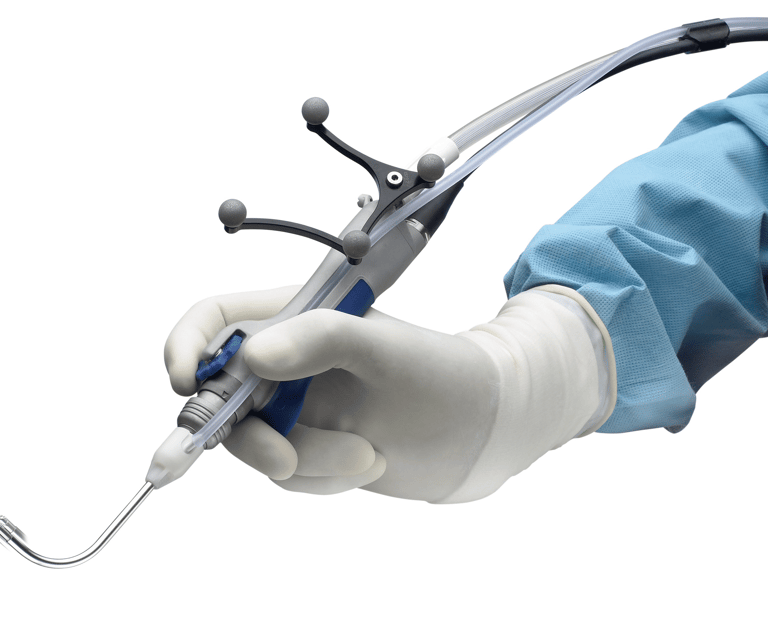

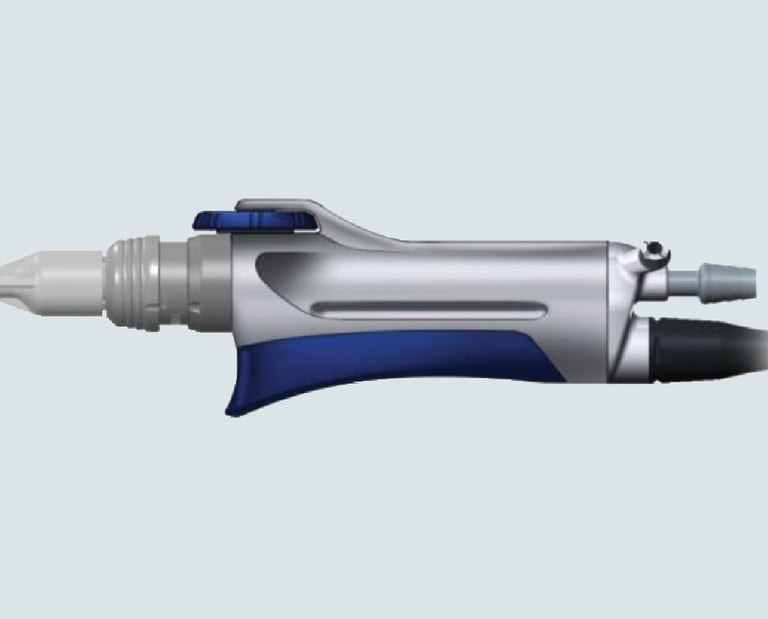

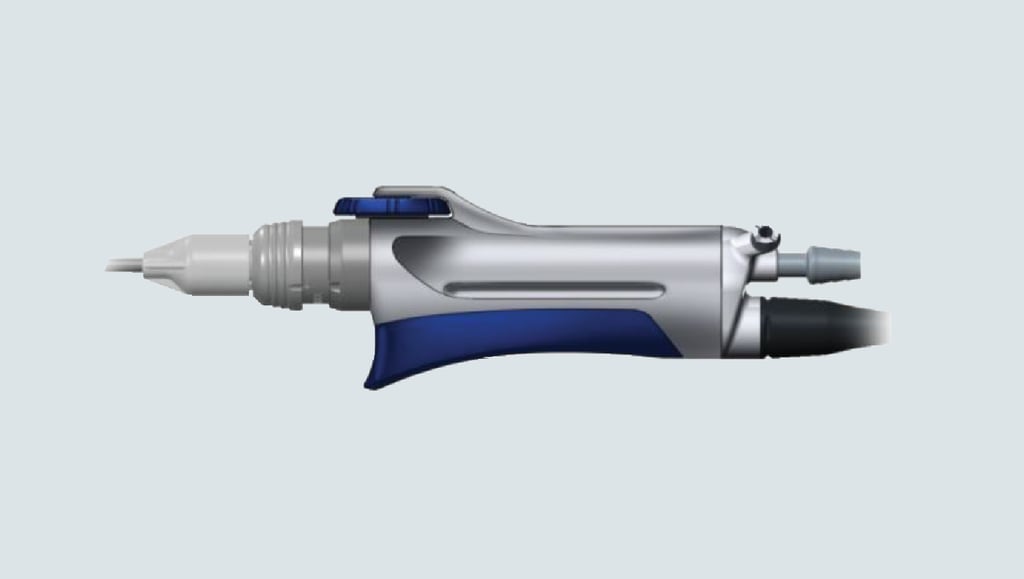

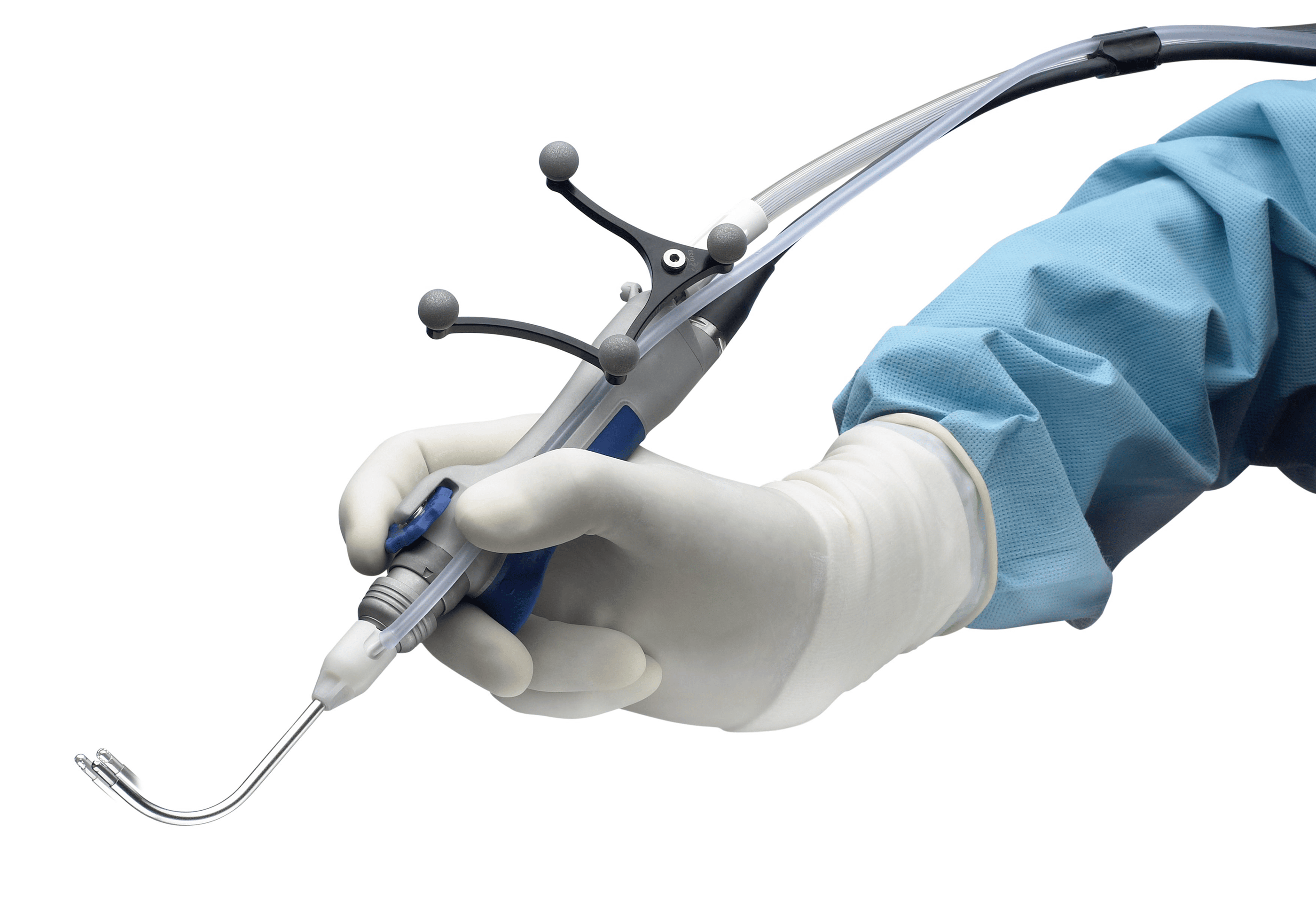

  • The Medtronic M4 Straightshot Microdebrider was completely redesigned with the following features:

    • compact form with the center of gravity balanced in the hand

    • grip zones at the front of the handpiece that improved grip security and allowed surgeons to use a variety of grip postures.

    • ergonomic finger wheel in the grip zone for rotating the tip of the cutting blade

    • elastomeric overmold for increased grip security

    • grooves in the handpiece body for irrigation tubing management

  • 19% increase in market share in the 5 years following the launch of the M4, significantly increasing their category leadership!

  • 20 years after launch, it's still the market leader!

  • A subsequent model update, the M5, retained the same original M4 design.

  • Recognized for its user-centered design and ergonomics with 4 major design awards.
